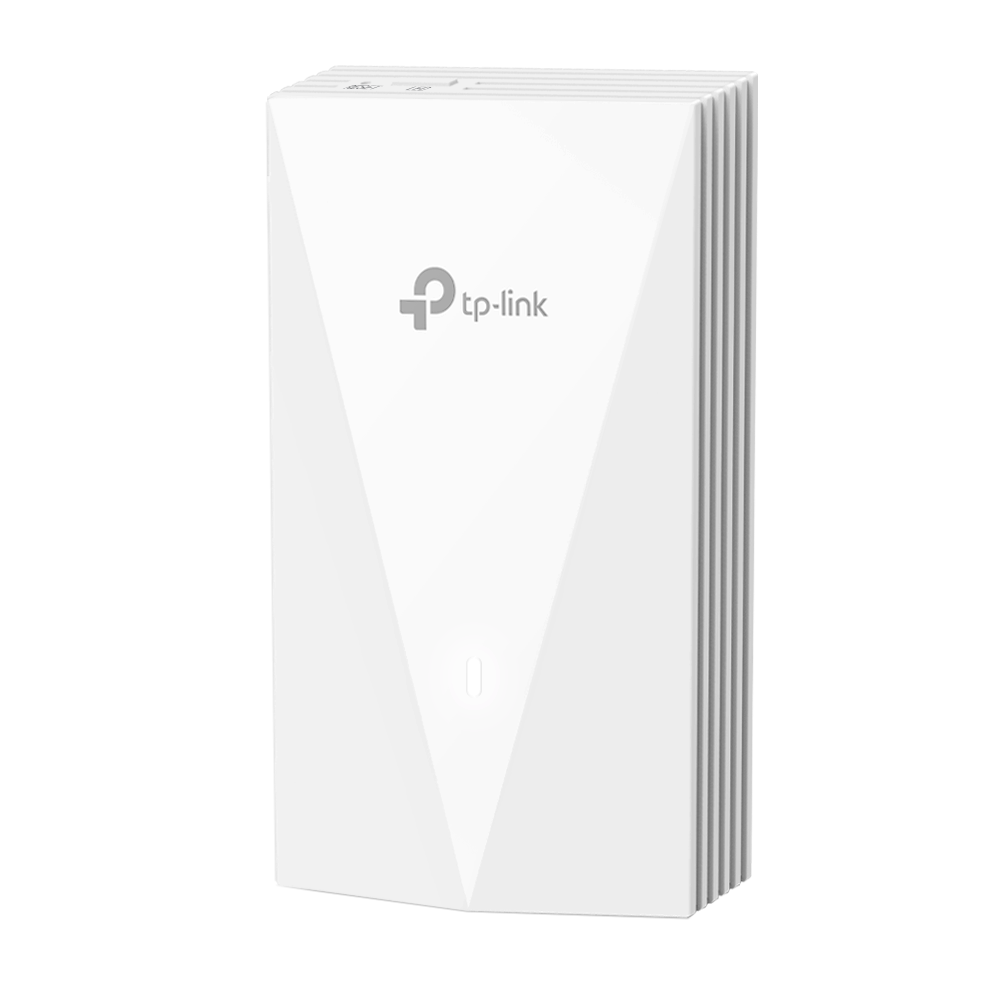

TP-LINK EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคา:
สินค้าโปรเจค ติดต่อร้านเพื่อขอราคา
รหัสสินค้า:
EAP655-Wall

คุณสมบัติของสินค้า

  • Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
  • Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.§
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
HARDWARE FEATURES
Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical Security Lock No
Button Reset, LED
Power Supply 802.3af/at PoE
Power Consumption • EU: 12W (802.3at PoE, PoE Out off)
• US: 12.6W (802.3at PoE, PoE Out off)
Dimensions 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi
Mounting Wall Plate Mounting (Kits included)
WIRELESS FEATURES
Maximum Number of Wireless Clients 100+ △
Concurrent Clients 100+
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming§
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz band1 & 2, EIRP)
<26 dBm (5GHz band3, EIRP)

• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification FCC, RoHS
Package Contents • AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
• Installation Guide
• Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
