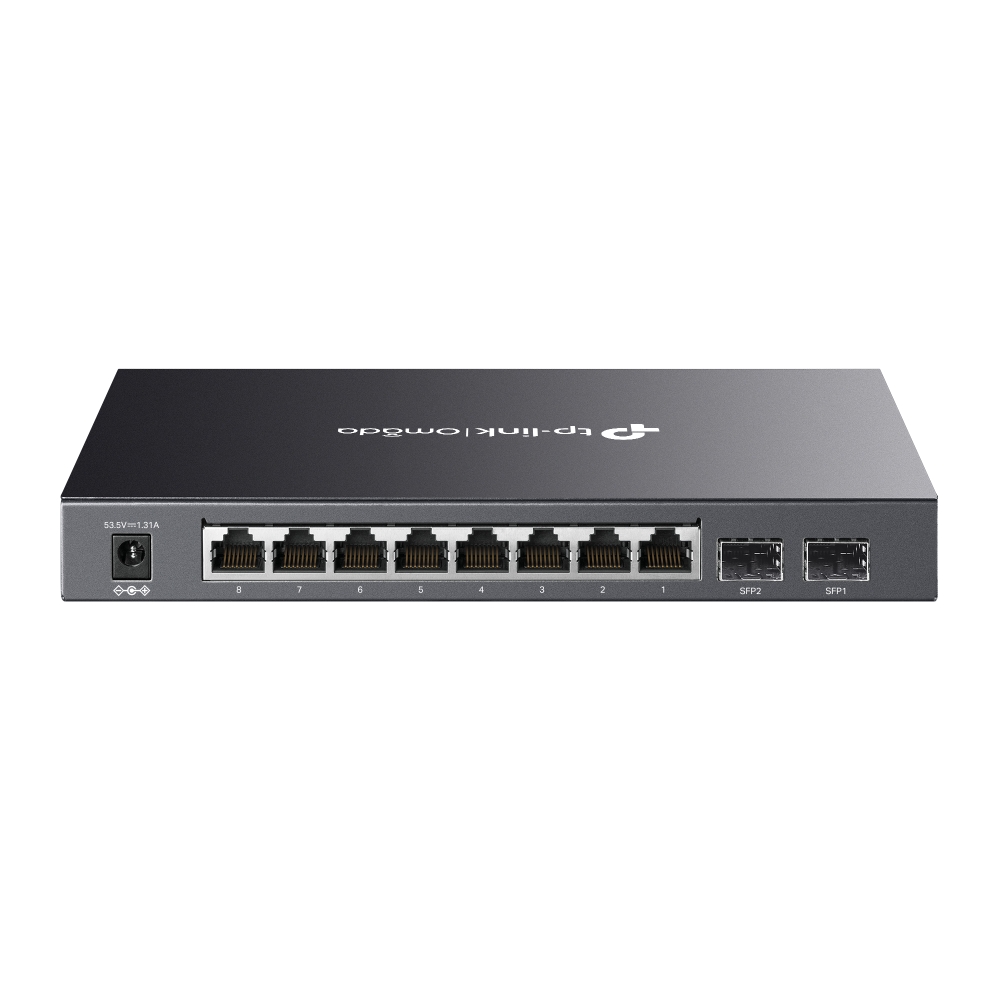

TP-LINK SG2210P Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
ราคาเต็ม:
3,690.00฿
ราคารวม:
2,990.00฿ (คุณประหยัดเงิน 700.00฿)
รหัสสินค้า:
SG2210P
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

  • 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
  • 61 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design
HARDWARE FEATURES
Interface • 8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
Fan Quantity Fanless
Physical Security Lock √
Power Supply External Power Adapter (Output: 53.5VDC/1.31A)
PoE Ports (RJ45) • Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 61 W*
Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)
Mounting Desktop / Wall-Mounting
Max Power Consumption 77.8 W (110 V/60 Hz) (with 61 W PD connected)
Max Heat Dissipation 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features • 32 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 Multicast • 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List • Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
Security • IP-MAC-Port Binding
• AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
IPv6 • IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents • SG2210P
• Power Adapter
• Installation Guide
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature: 0℃~40℃ (32℉~104℉);
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
