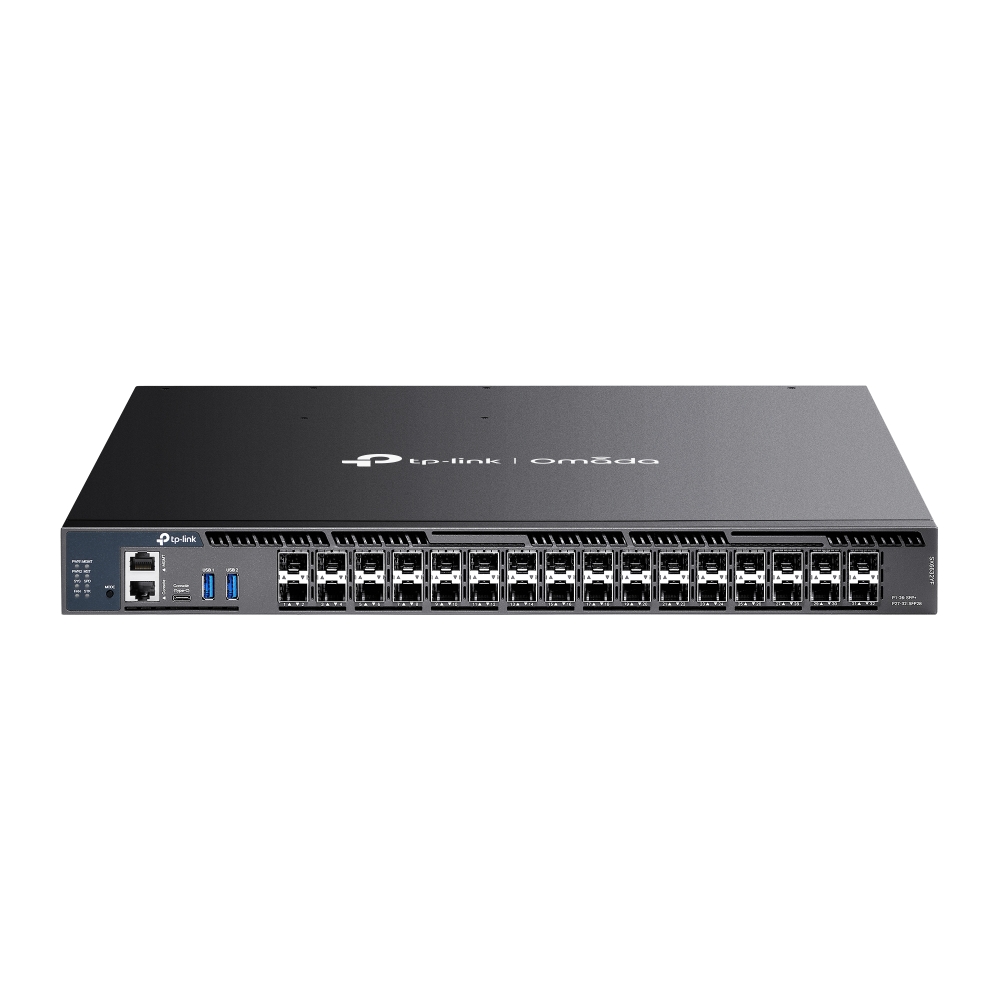

TP-LINK SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
ราคาเต็ม:
99,900.00฿
ราคารวม:
79,900.00฿ (คุณประหยัดเงิน 20,000.00฿)
รหัสสินค้า:
SX6632YF
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

  • 26× 10G SFP+ slots and 6× 25G SFP28 slots
  • 820 Gbps switching capacity
  • Physical Stacking for built-in redundancy and performance
  • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
  • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
  • Highly Available with two field-replaceable power supplies*, VRRP, and ERPS
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON
HARDWARE FEATURES
Interface • 6× 10/25G SFP28 Slots
• 26× 1/10G SFP+ Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type C Console Port
• 1× RJ45 Management Port
Fan Quantity Four field-replaceable and hot-swappable fans (N+1 redundant)
Physical Security Lock √
Power Supply Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)

*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
Power Consumption 86.7 W (110 V/60 Hz)
Dimensions ( W x D x H ) 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting Rack Mountable
Max Heat Dissipation 295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity 820 Gbps
Stacking • Stacking Number: 8
• Stacking Port: 25G SFP28
• Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate 610.1 Mpps
MAC Address Table 128 K
Packet Buffer Memory 8 MB
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Strom Control
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features • IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
• Static Routing
- IPv4: Max 2,048, IPv6: Max 1,024
• Host Route Table: Max 15,300 entries
• RIP: Version v1/v2, Max 102,400
- RIPng: Max 51,200
• OSPF: Version v2/v3;
- v2: Max 102,400
- v3: Max 51,200
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexhops per Destination
• Static ARP
- 1,024 static entries
• Dynamic ARP
- 24,576 dynamic entries
• Proxy ARP
• DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features • Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 ports per group
- Up to 120 LAG Groups
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- Up to 64 MSTI instances (4 at Omada controller mode)
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port based
- VLAN based
• Flow Control
- 802.3x Flow Control
• Supports 4,093 IGMP groups
• ERPS: Up to 64 ERPS rings
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
• RSPAN
• Mac Address
- MAC Address Table
- Static MAC: Max 128 entries
- Dynamic MAC Address: Max 128K entries
- Filtering MAC Address: Max 128 entries
• Virtual MAC (only supported in standalone mode)
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
• PPPoE ID Insertion
VLAN • VLAN Group (802.1q VLAN)
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
- VLAN Mapping
- VLAN Replace
• Voice VLAN
• Private VLAN
Security • Port Isolation
• CPU-Deffend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support RADIUS authentication and accountability
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC based access control
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
OTHERS
Package Contents • SX6632YF Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
